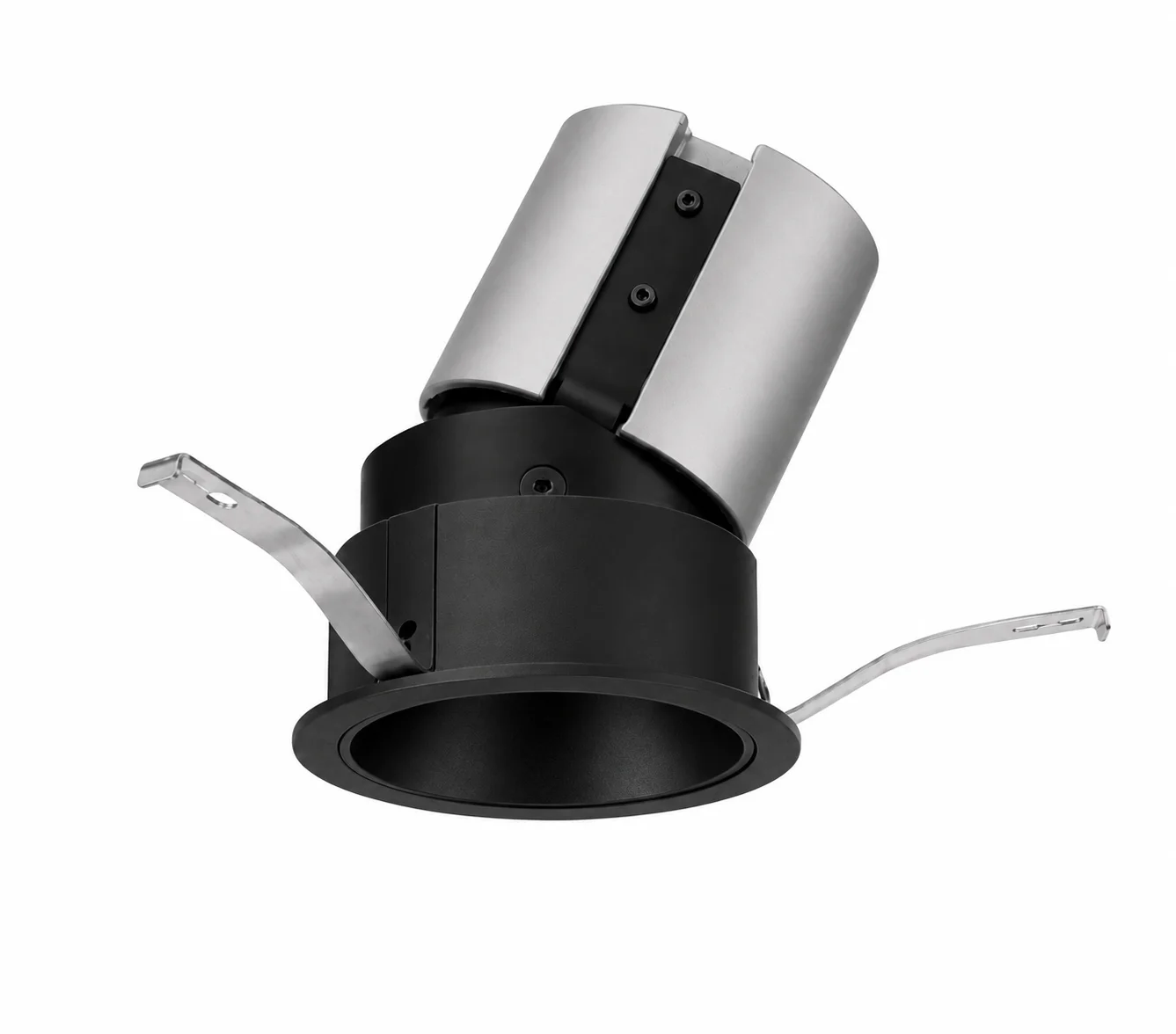

Draco 70R TRM BK LED
Draco·Downlights

Draco 70R TRM BK LED

DRA-70R-REC-TRM-BK-LED-MOD-CR90-CT30-OP15-WT10-RMCC-250MA

IP20recessed250MA

Overview

•Draco is a high-performance recessed LED downlight designed to deliver exceptional efficiency, precise beam control, and excellent color consistency. Its deeply recessed light source minimizes glare while providing outstanding visual comfort, making Draco ideal for demanding architectural lighting applications.
Mounting Typerecessed
Beam Angle15°
Light SourceLED Integrated
Power System10W
Lumens System724lm
Efficacy System72.4 lm/W
Color Temperature3000K
CRI90+ CRI
Voltage250MA
IP RatingIP20
MaterialAluminum
FinishBlack
Dimensions77 × 102 × 77 mm · 0.2 kg

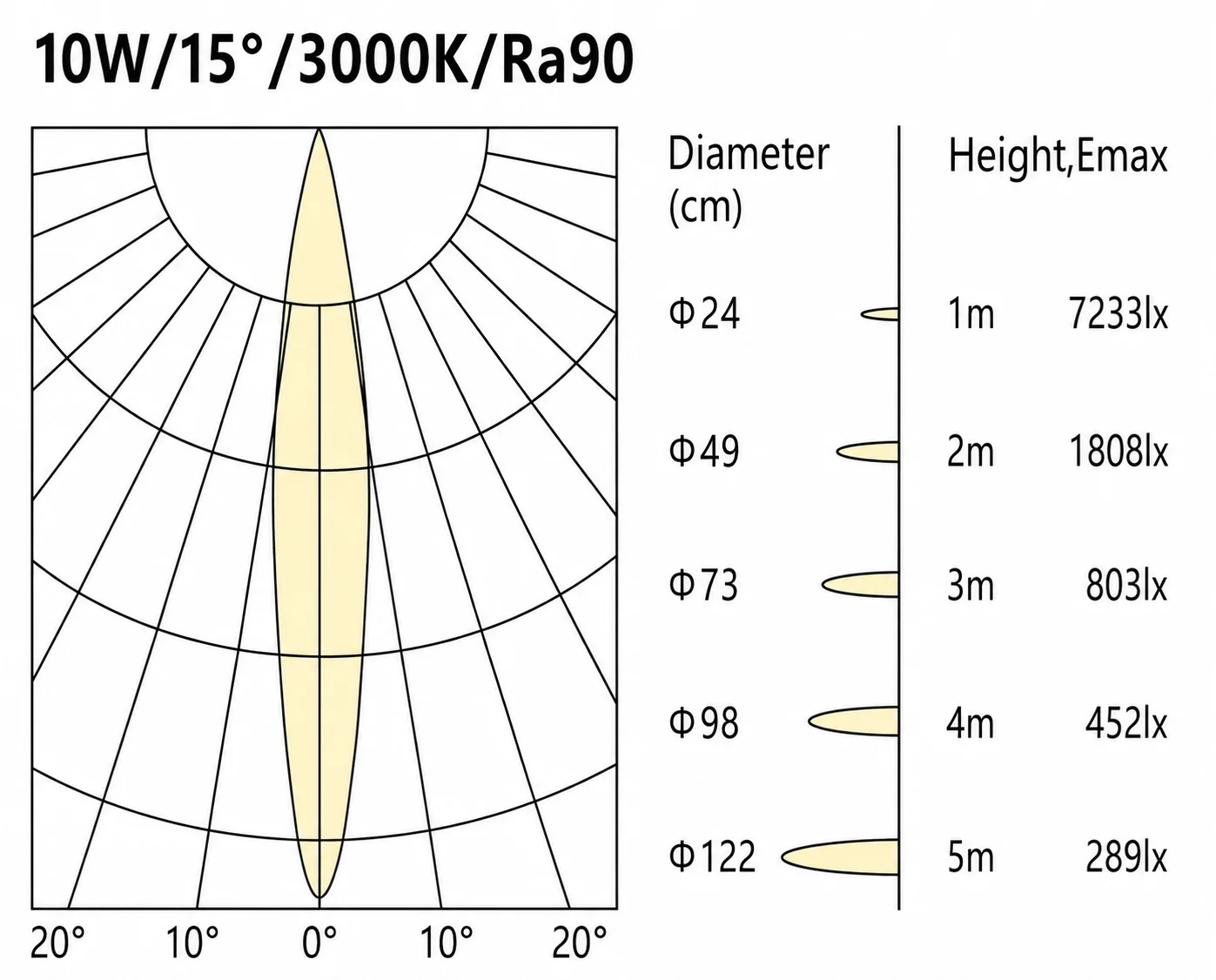

Photometric Distribution

Photometric Curve Image - ChatGPT Image 31 jul 2026, 14_33_35.png

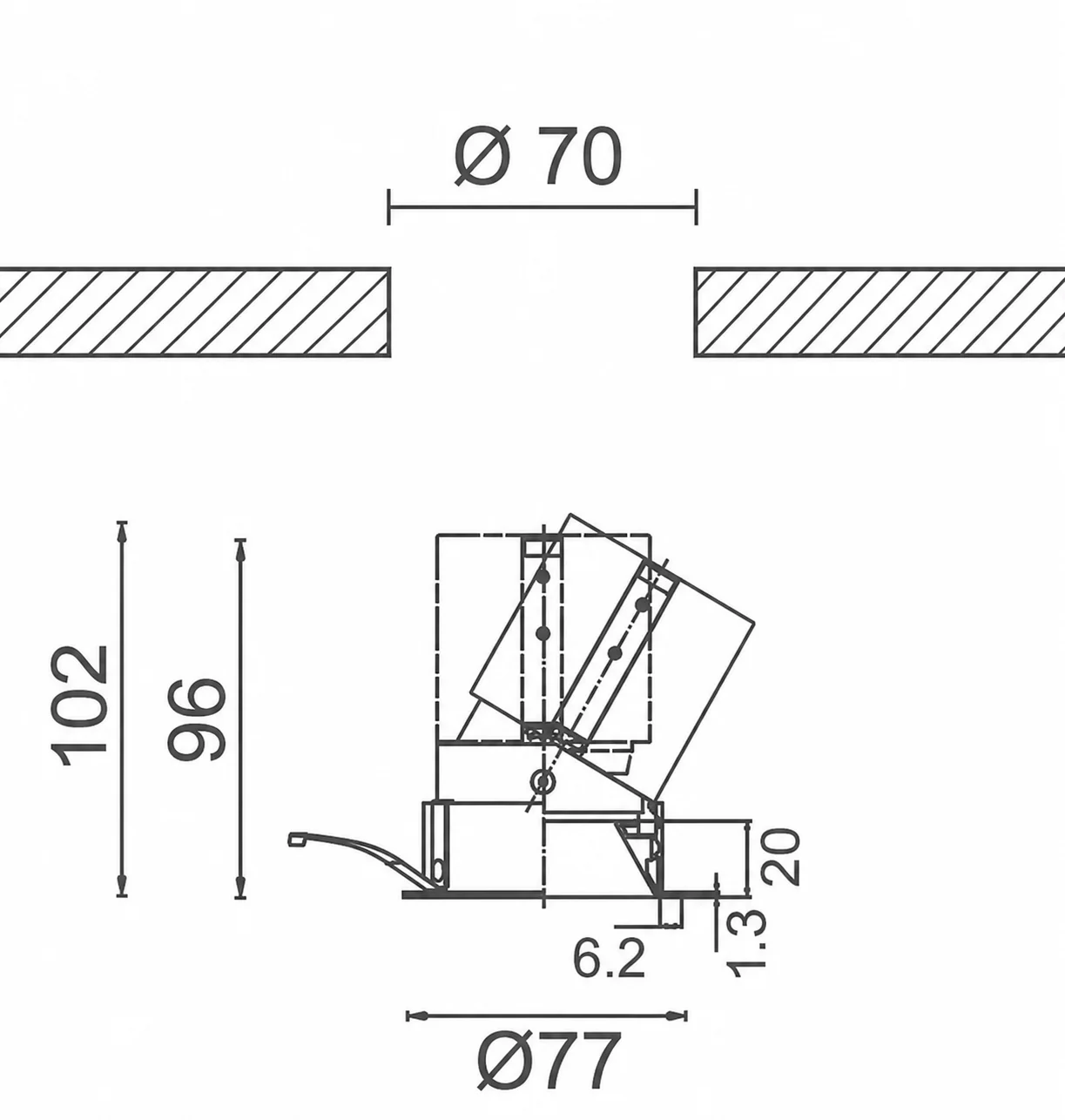

Dimensions

Product Dimensions Image - ChatGPT Image 31 jul 2026, 13_03_22.png
